Description
Product Overview

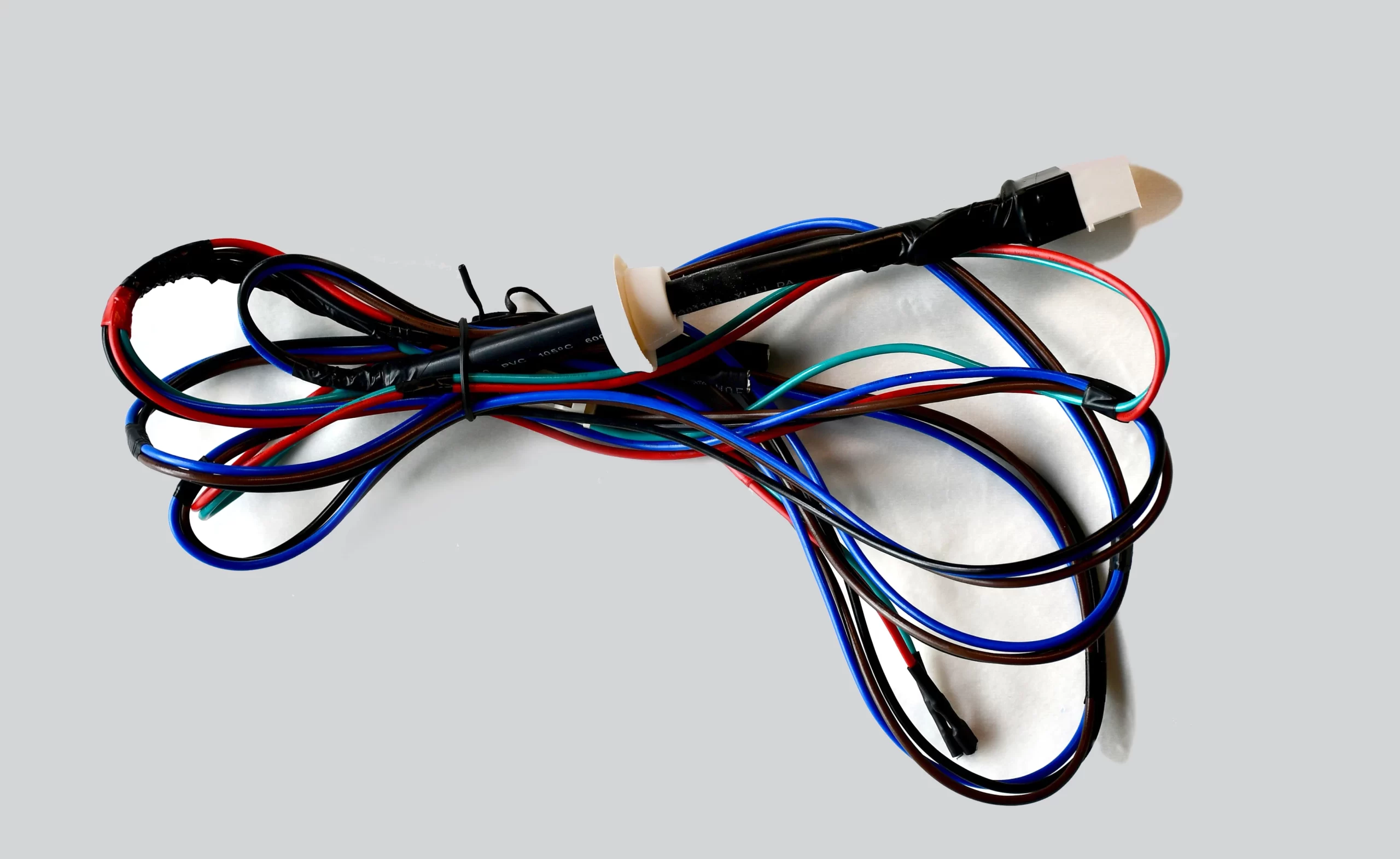

This custom refrigerator internal wiring harness is a core electrical accessory for refrigeration equipment, integrating multi-strand insulated wires, terminals, connectors and heat-shrinkable tubes to replace scattered wiring, enabling efficient circuit connection and signal transmission inside refrigerators.
It addresses common industry pain points: loose wiring, insufficient temperature resistance, messy layouts causing short circuits, high after-sales failure rates and low installation efficiency, with an integrated custom solution.
- 1:1 customization based on customer equipment for perfect matching of hole positions, lengths and terminals
- Flame-retardant and temperature-resistant insulation materials for long-term appliance operation
- Integrated design reduces installation time and failure rates
- Bulk customization compatible with multiple refrigerator brands to lower procurement costs
Aliases
Refrigerator Wiring Harness, Refrigerator Internal Wiring, Fridge Wire Harness
Application Positions
Connections between main control boards, compressors, fans, thermostats, lights, sensors and other internal electrical components of refrigerators
Application Fields
Household refrigerators, commercial freezers, chest freezers, built-in refrigeration equipment, ice makers and other refrigeration appliance industries
B2B Cooperation Invitation
We are a professional overseas supplier of refrigerator wiring harnesses, supporting OEM/ODM customization. Global refrigeration equipment brands, OEM factories and maintenance service providers are welcome to establish long-term supply partnerships.
- Wire gauge: AWG 18~24 (matched to customer electrical load)
- Terminal models: JST/AMP/TE series or customer-specified models
- Connector types: Male/female plugs, pin headers
- Wire colors: Red/blue/black/brown/green as per customer requirements
- Heat-shrinkable tubes/sheaths: Flame-retardant PVC or PE, customized by temperature resistance rating
- Conductor material: Tinned copper wire (compliant with GB/T 3956 / IEC 60228)
- Insulation material: Flame-retardant PVC/XLPE (105℃ temperature resistance, UL 105℃ standard)
- Rated voltage: 300V (AC/DC universal, compliant with household appliance low-voltage standards)
- Insulation resistance: ≥100MΩ/DC 500V
- Dielectric strength: AC 1500V/1min no breakdown
- Domestic certification: CCC (China Compulsory Certification)
- International certifications: UL (US Safety Certification), RoHS (EU Environmental Directive), REACH (EU Chemicals Regulation)
- Industry-specific: IEC 60335 (Safety standard for household and similar electrical appliances)
- Refrigerator OEM assembly lines
- Refrigerator after-sales maintenance and replacement
- Commercial freezer and chest freezer OEM processing
- Built-in refrigeration equipment and ice maker circuit modification
- Free sample testing and on-demand prototyping
- Reverse engineering based on customer drawings, barcodes or part numbers
- Support from small trial orders to large-scale stable supply
- Technical support to help optimize wiring solutions
