Description
Overall Introduction

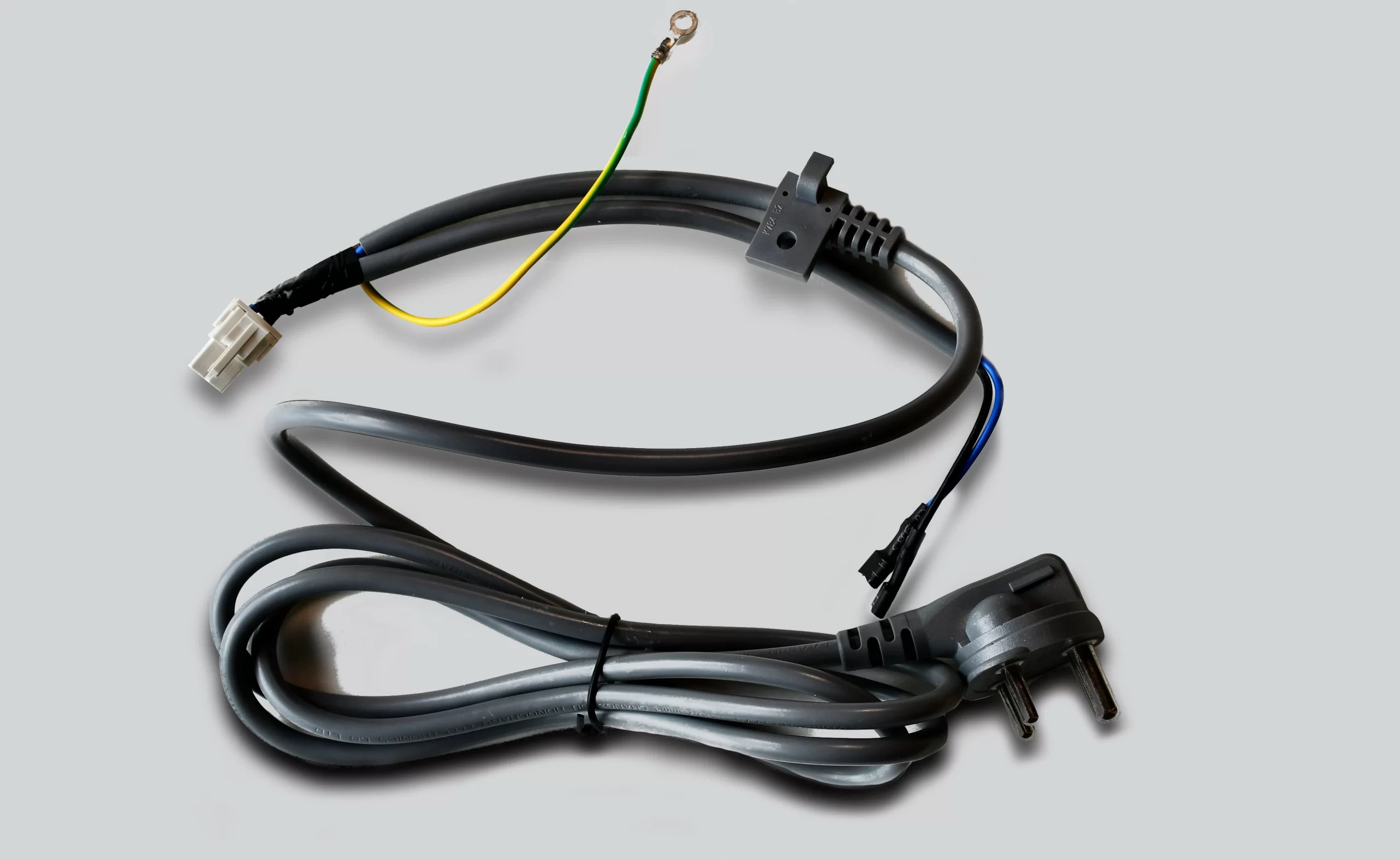

This is a customized power cord assembly specially designed for refrigerators, solving common industry pain points such as incompatible interfaces, mismatched ground terminals, and non-compliant plugs with universal power cords. Made of high-purity copper conductors and flame-retardant insulation materials, it fits various refrigerator models to ensure stable and safe power supply.
Core Advantages
- Customized interface design, 1:1 fit with original refrigerator positions without modification
- Optional EU/US/UK/AU/CN plugs to meet compliance requirements of different markets
- Integrated ring ground terminal for enhanced electrical safety redundancy
- Customizable cable length, terminal type and connector specifications
- Compliant with home appliance safety standards and third-party tested
Aliases
Refrigerator Power Cord Assembly, Refrigerator Power Harness
Application Parts
Refrigerator mainboard power interface, refrigerator compressor power terminal, refrigerator main power input port
Application Fields
Household refrigerators, commercial freezers, display cabinets, vertical refrigerators, built-in refrigerators and other refrigeration appliances
Supplier Cooperation
We sincerely invite global B-end suppliers, brands and maintenance channels to cooperate. We provide OEM/ODM customization services, support mass production according to customer barcodes and specifications, and offer stable supply and after-sales support.
Customizable Items (Examples)
- Cable length: 0.8m/1.2m/1.5m/2.0m (customizable on demand)
- Plug type: EU/US/UK/AU/CN standard plugs
- Connector model: Molex 2P/3P series (customizable as per customer specified models)
- Ground terminal: Ring terminal / Fork terminal (aperture adapted to customer equipment)
- Cable specification: H05VV-F 3×0.75mm² / 3×1.0mm² (compliant with IEC 60227)
Specifications (Industry Standard Reference)
- Conductor material: Oxygen-free copper (≥99.95%)
- Insulation material: PVC (flame retardant grade V-0, compliant with IEC 60335-1)
- Rated voltage: 250V
- Rated current: 10A/16A
- Operating temperature: -25℃~+70℃
- Insulation resistance: ≥100MΩ (DC 500V)
Standards & Certifications
- Domestic certification: CCC (China Compulsory Certification)
- International certifications: CE (EU), RoHS (EU Environmental), REACH (EU Chemical), UL (US)
- Industry-specific: IEC 60335-1 (Safety of household and similar electrical appliances), IEC 60227 (PVC insulated cables)
Application Scenarios
- Original refrigerator factory matching production
- Refrigerator after-sales maintenance replacement
- Freezer/refrigeration equipment export order matching
- Customized refrigeration equipment power supply solutions
Customization Services
- Free sample confirmation available
- Custom production according to customer drawings/barcodes
- Third-party test reports and compliance documents provided
- Small batch trial orders + mass stable supply
- Custom packaging and customer logo printing available
Our customized refrigerator power cord assemblies strictly follow industry standards in every step from materials and specifications to certifications, providing safe and reliable power supply for your refrigeration equipment. Whether you are a brand, supplier or maintenance channel, we can provide exclusive OEM/ODM customization solutions, supporting on-demand production and stable supply. Contact us now for free samples and quotations to start long-term cooperation!
