Custom Evaporator | High Efficiency Corrosion Resistant Industrial Heat Exchanger

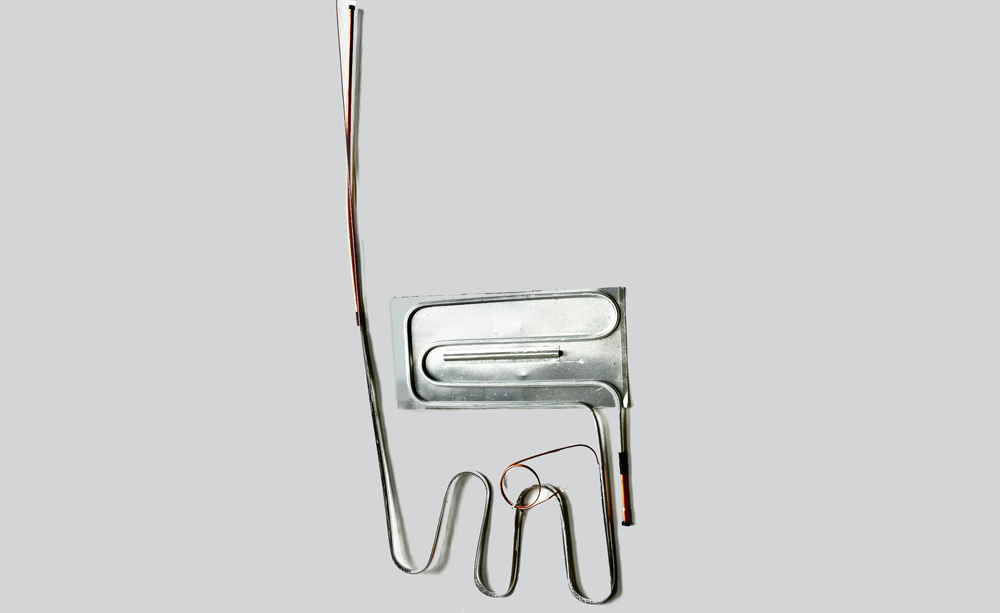

Tube-on-Plate evaporator is a core cooling component for refrigerators, freezers and display cabinets, widely used in household and commercial refrigeration fields.

Traditional evaporators have problems such as poor heat conduction, leakage, easy deformation and low compatibility.

We provide customized high-performance solutions to solve your refrigeration matching & durability issues.

✅ Stable Heat Conduction: Tube and plate closely bonded for uniform cooling effect;

✅ Leak-proof & Durable: Integrated structure, anti-deformation, long service life;

✅ Wide Compatibility: Fit most household & commercial refrigeration equipment;

✅ Full Customization: Custom size, pipe layout and ports for different models;

✅ Stable Supply: Strict quality control, support bulk B2B overseas orders.

Material: EVAP-M01 (Pure Aluminum), EVAP-M02 (Composite Aluminum)

Size: EVAP-S01 (Standard Size), EVAP-S02 (Compact Size), EVAP-S03 (Large Size)

Pipe Layout: EVAP-P01 (Standard Coil), EVAP-P02 (Dense Coil), EVAP-P03 (Wide Coil)

Port: EVAP-T01 (6mm Port), EVAP-T02 (8mm Port), EVAP-T03 (Custom Angle)

Standards: QB/T Household Refrigeration Appliance, IEC 60335-2-24

Tube Outer Diameter: 6mm / 8mm (conventional size)

Plate Flatness: ≤ 0.5 mm/m

Hydrostatic Test: 1.5 times design pressure, no leakage

Working Medium: Refrigerant for household & commercial fridge

Domestic

ISO 9001 Quality Management System

CCC China Compulsory Certification

QB/T Refrigeration Industry Qualification

International

CE EU Safety Certification

IEC 60335-2-24 Household Appliance Safety

ISO 5149 Refrigeration System Safety

Industry-Specific

Refrigeration Component Inspection Certificate

Food Grade Aluminum Material Certification

Household: Direct-cool refrigerators, chest freezers, wine coolers

Commercial: Refrigerated display cabinets, bar fridges, mini cold storage

Special Use: Vehicle refrigerators, small medical low-temperature cabinets

Design: Custom design per customer drawings & physical samples

Manufacturing: Custom material, dimension, pipe layout and connector

Production: Small trial order & large batch long-term cooperation available

Packaging: Professional sea-freight packaging for overseas transportation

After-sales: Strict pre-shipment inspection, reliable technical support

We focus on R&D and manufacturing of customized Tube-on-Plate evaporators, with stable performance, reliable quality and complete certifications. We provide one-stop customized service for global refrigeration parts suppliers and manufacturers. Our products fit various refrigeration equipment perfectly. Feel free to contact us to get free solution and quotation!
